Standard Wide Aisle Pallet Racking

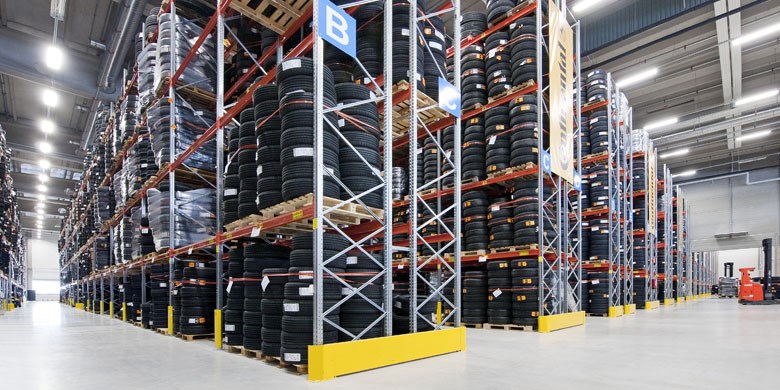

P90 Standard Wide Aisle Pallet Racking provides your warehousing teams with unrestricted access to all your pallets at all times. The system delivers versatility and assembly as single- or double-depth racks.

P90 Pallet Racking easily adapts to your specific warehouse and storage requirements, thanks to a variety of widths, depths and heights. In fact, P90 Racking will fit into any space available, and is suited to all kinds of pallets – whether they be Euro, Chep, disposable or captive pallets, mesh boxes or bins.

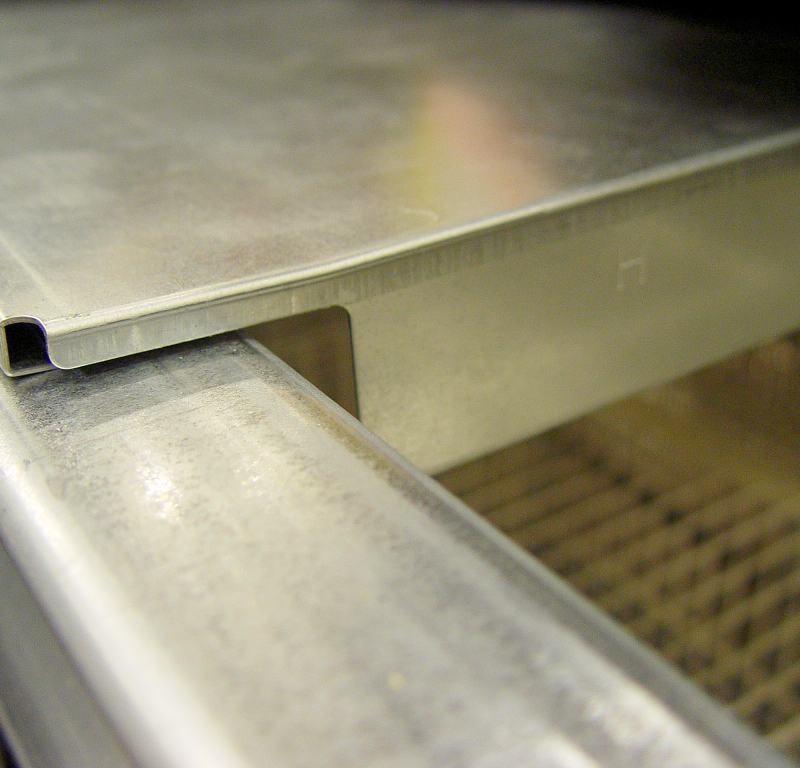

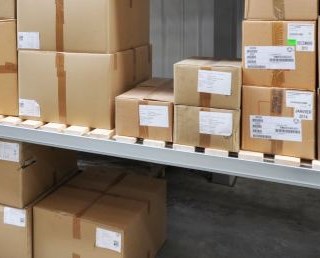

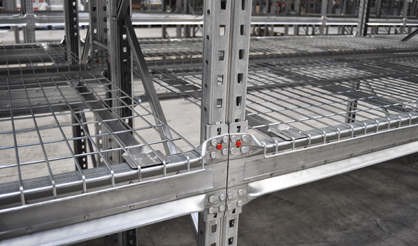

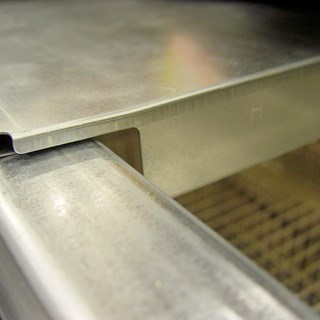

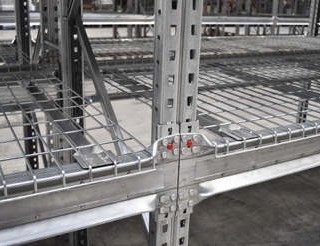

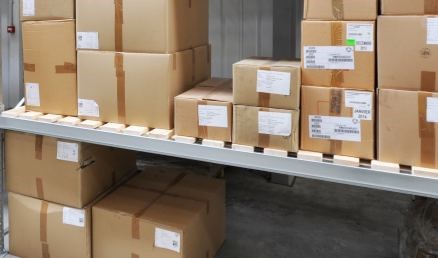

The modular, future-proof system adapts perfectly to your particular needs – thanks to different beams, angle supports and shelves and extensive accessories range.

P90 Standard Wide-Aisle Racking offers the following features and benefits as standard:

  • Free and unrestricted access at all times
  • Optimum adaption for the full range of pallets
  • High stability and high-quality workmanship
  • Rack heights of up to 30 metres and maximum bay loads of more than 30 tons
  • P90 components are permanently protected against corrosion

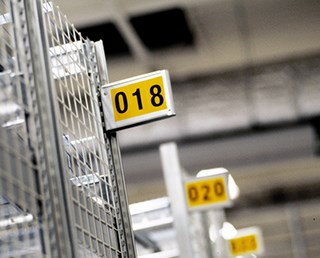

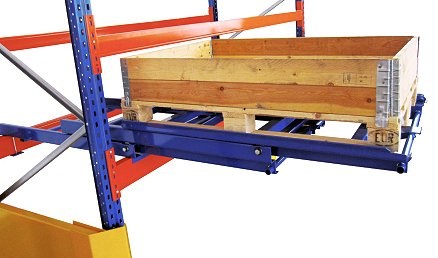

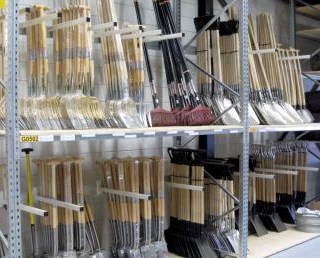

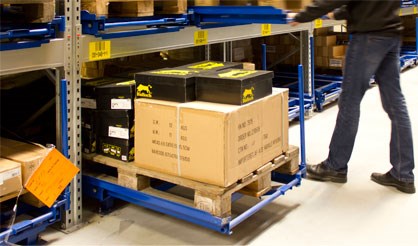

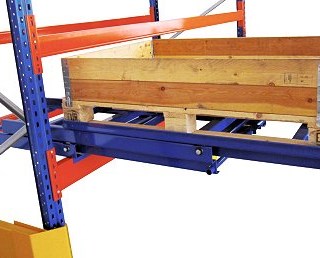

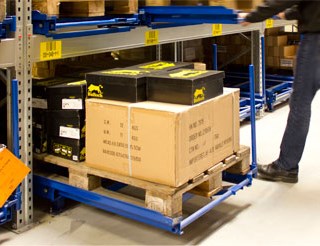

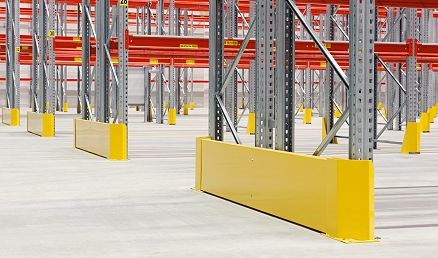

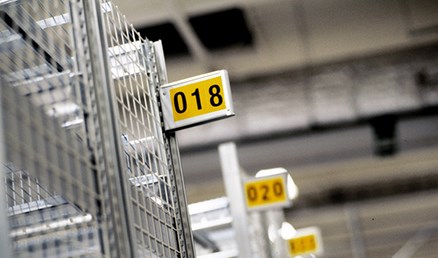

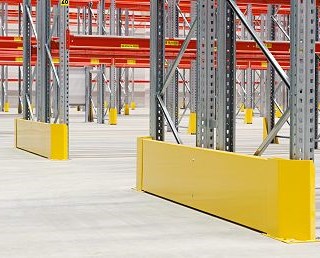

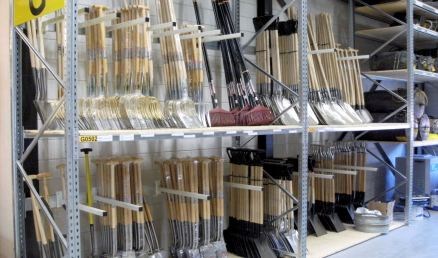

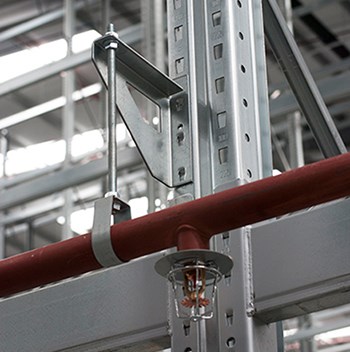

  • Comprehensive range of accessories and complementary features

Depth: 800mm / 900mm / 1050mm / 1100mm

Length: 1000mm – 5000mm

Height: 1500mm – 30000mm


Load (per Level): up to 5000kg

Load (per bay): up to 30000kg


Uprights: pre-galvanised

Beams: pre-galvanised or painted

Accessories: pre-galvanised or painted
